recent changes

2013-02-12: The rating curve for Lake Abilene has been updated and replaced with data from the Texas Water Development Board's Report 126.

Lake Abilene is 94.2% full as of 2016-07-25

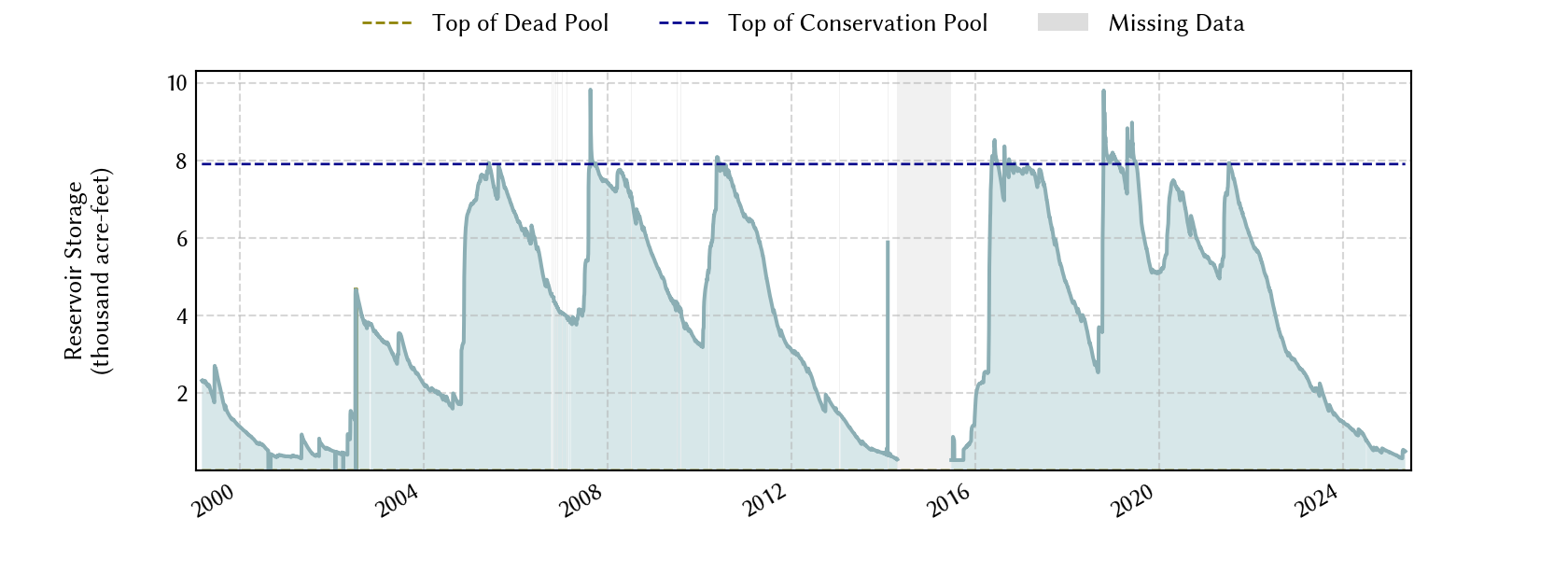

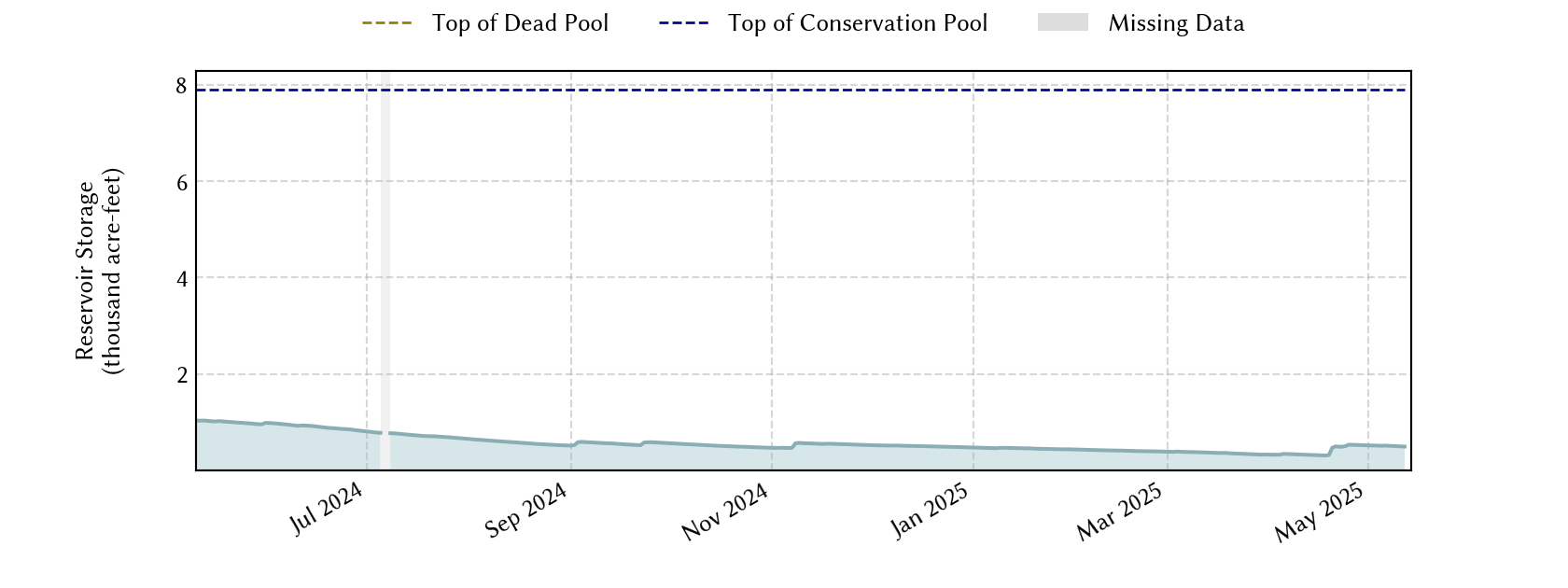

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, while the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2016-07-25 94.2 2,011.53 7,444 7,444 7,900 578
1 day prior 2016-07-24 94.4 2,011.56 7,461 7,461 7,900 578
2 days prior 2016-07-23 94.7 2,011.60 7,484 7,484 7,900 579
1 week prior 2016-07-18 96.0 2,011.77 7,581 7,581 7,900 583
1 month prior 2016-06-25 100.0 2,012.33 7,915 7,900 7,900 596
3 months prior 2016-04-25 70.8 2,008.30 5,594 5,594 7,900 502
6 months prior 2016-01-25 27.7 1,999.45 2,187 2,187 7,900 266
1 year prior 2015-07-25 3.4 1,988.21 265 265 7,900 87
*

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2016-07-25 17:30 2,011.52 2,012.3 -0.8 below flood pool
1 hour prior 2016-07-25 16:30 2,011.53 2,012.3 -0.8 below flood pool
2 hours prior 2016-07-25 15:30 2,011.53 2,012.3 -0.8 below flood pool
6 hours prior 2016-07-25 11:30 2,011.53 2,012.3 -0.8 below flood pool
12 hours prior 2016-07-25 05:30 2,011.54 2,012.3 -0.8 below flood pool
24 hours prior 2016-07-24 17:30 2,011.56 2,012.3 -0.7 below flood pool
48 hours prior 2016-07-23 17:30 2,011.60 2,012.3 -0.7 below flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1921-01-01
Vertical datum NGVD29
Gauge USGS:08083270
Dead pool elevation 1968.8 ft above NGVD29
Service spillway crest elevation 2009.7 ft above NGVD29
Conservation pool elevation 2012.3 ft above NGVD29
Emergency spillway crest elevation 2018 ft above NGVD29
Top of dam elevation 2024 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

1974-10-01 (source: twdb)
