Recent changes

2017-06-05: The Texas Water Development Board has issued experimental May-July 2017 storage forecasts for Aquilla Lake, Lake Limestone, and Proctor Lake.

Aquilla Lake: 88.1% full as of 2019-09-19

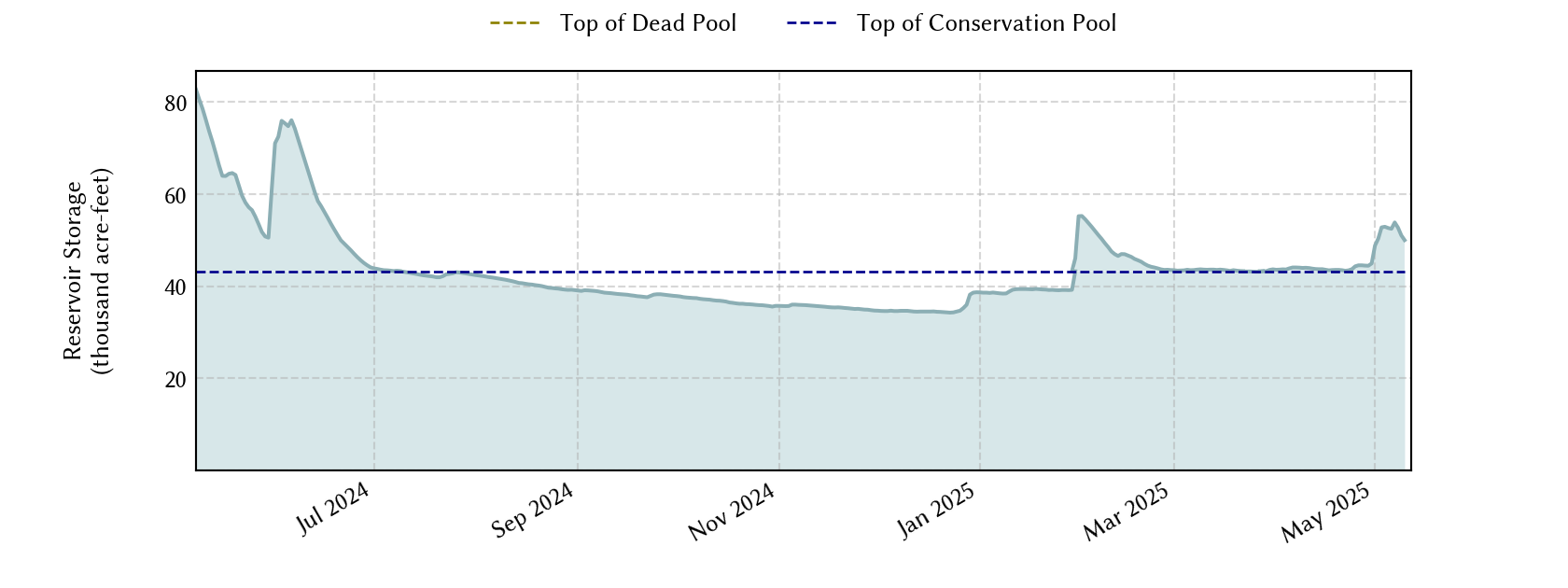

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

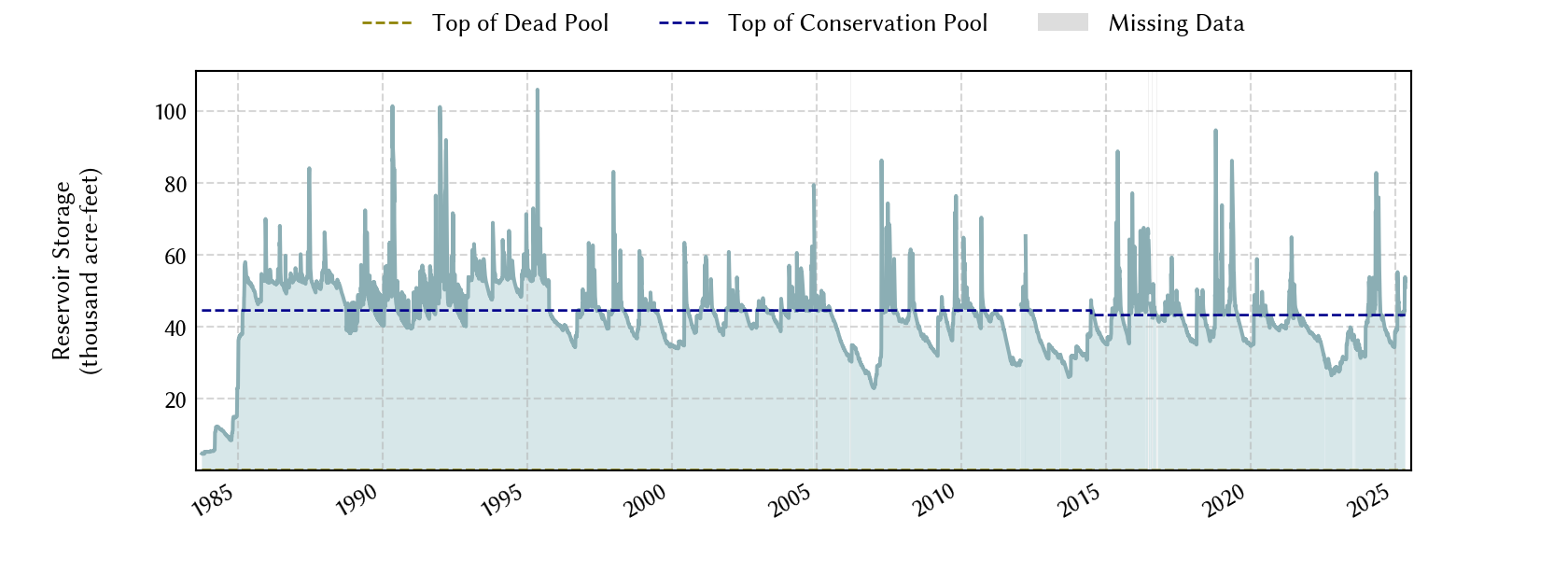

Historical Data

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2019-09-19 88.1 535.77 38,127 38,091 43,243 2,848
1 day prior 2019-09-18 88.2 535.79 38,184 38,148 43,243 2,852
2 days prior 2019-09-17 88.3 535.81 38,241 38,205 43,243 2,856
1 week prior 2019-09-12 89.2 535.94 38,614 38,578 43,243 2,880
1 month prior 2019-08-19 93.7 536.60 40,549 40,513 43,243 2,981
3 months prior 2019-06-19 100.0 538.78 47,324 43,243 43,243 - n.a. -
6 months prior 2019-03-19 100.0 537.95 44,678 43,243 43,243 3,137
1 year prior 2018-09-19 86.1 535.47 37,282 37,246 43,243 2,790
*

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2019-09-20 04:30 535.74 537.50 -1.76 below flood pool
1 hour prior 2019-09-20 03:30 535.74 537.50 -1.76 below flood pool
2 hours prior 2019-09-20 02:30 535.74 537.50 -1.76 below flood pool
6 hours prior 2019-09-19 22:30 535.75 537.50 -1.75 below flood pool
12 hours prior 2019-09-19 16:30 535.77 537.50 -1.73 below flood pool
24 hours prior 2019-09-19 04:30 535.77 537.50 -1.73 below flood pool
48 hours prior 2019-09-18 04:30 535.80 537.50 -1.70 below flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1983-01-01
Vertical datum NGVD29
Gauge USGS:08093350
Dead pool elevation 503.00 ft above NGVD29
Emergency spillway crest elevation 564.50 ft above NGVD29
Flood pool elevation 556.00 ft above NGVD29
Maximum design elevation 577.50 ft above NGVD29
Top of dam elevation 582.50 ft above NGVD29
Conservation pool elevation 537.50 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

2008-03-01 (source: twdb) : GIS Data
2014-07-01 (source: twdb) : GIS Data

Lake Location
