Bois d'Arc Lake: 43.4% full as of 2022-11-27

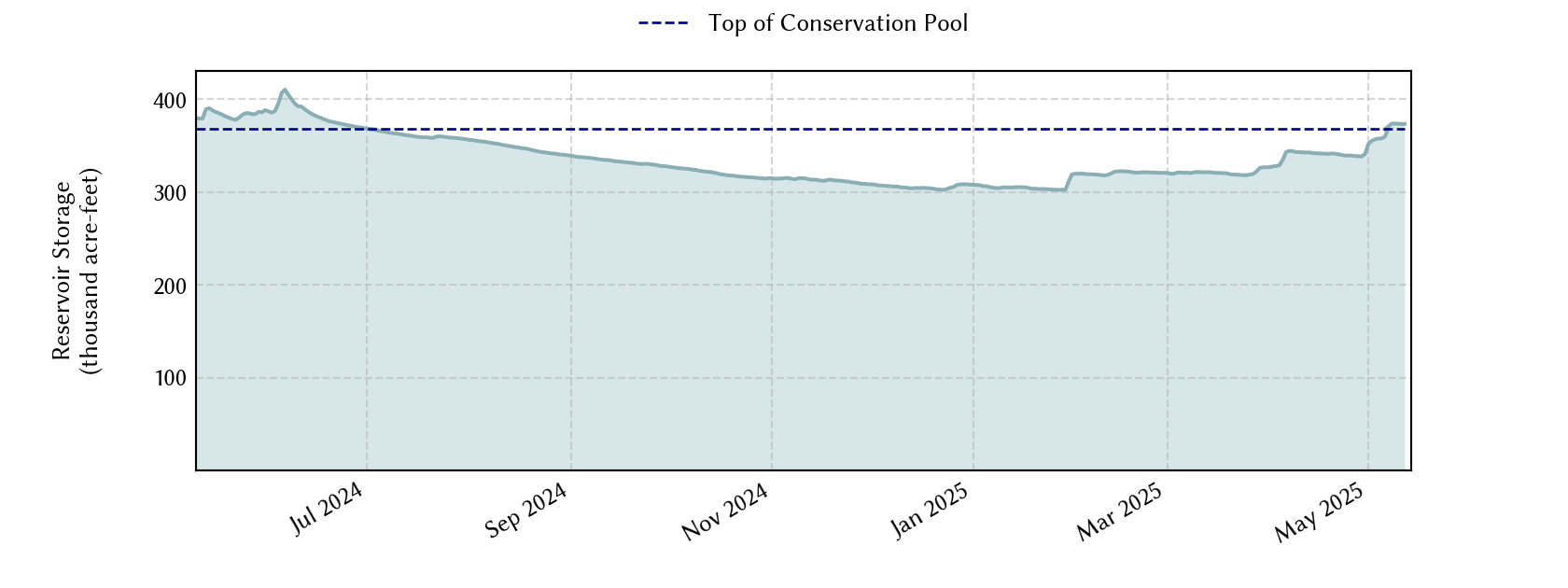

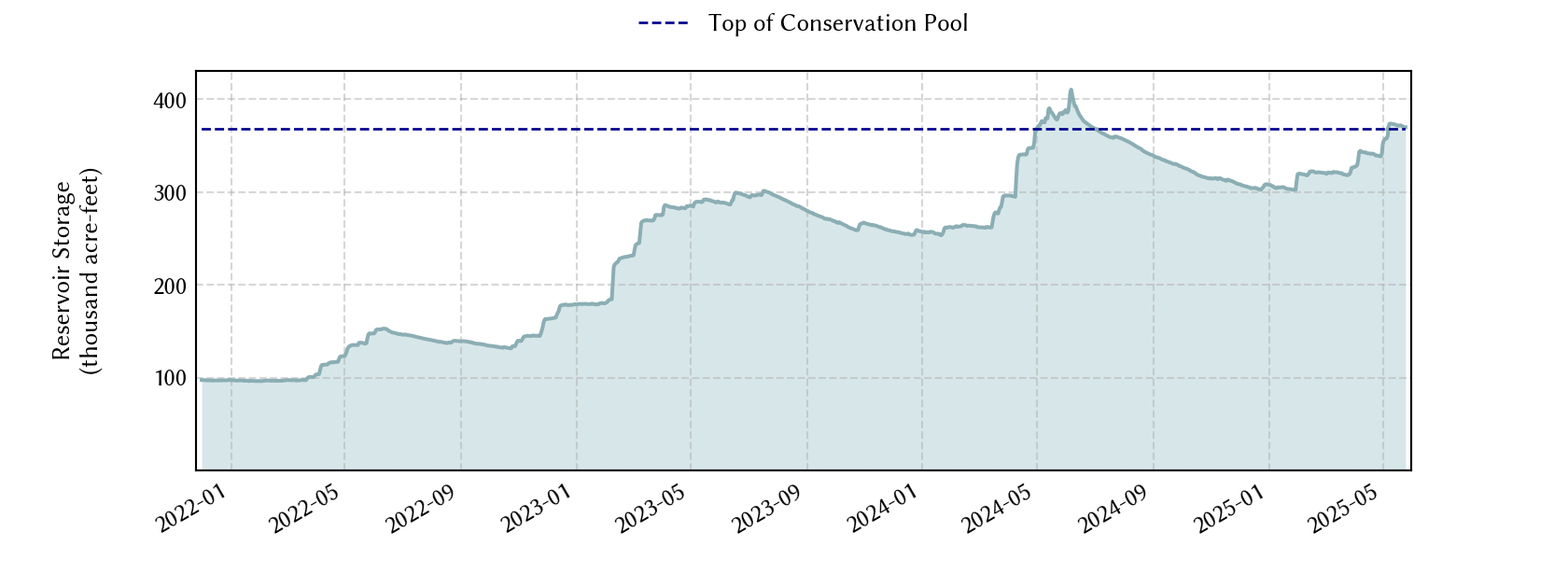

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Historical Data

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2022-11-27 43.4 517.84 159,707 159,707 367,609 9,751
1 day prior 2022-11-26 42.0 517.24 154,465 154,465 367,609 9,500
2 days prior 2022-11-25 41.1 516.85 151,057 151,057 367,609 9,336
1 week prior 2022-11-20 39.5 516.20 145,378 145,378 367,609 9,064
1 month prior 2022-10-27 36.4 514.83 133,775 133,775 367,609 8,545
3 months prior 2022-08-27 37.9 515.50 139,419 139,419 367,609 8,794
6 months prior 2022-05-27 40.2 516.46 147,650 147,650 367,609 9,173
1 year prior 2021-11-27 - n.a. - - n.a. - - n.a. - - n.a. - - n.a. - - n.a. -
*

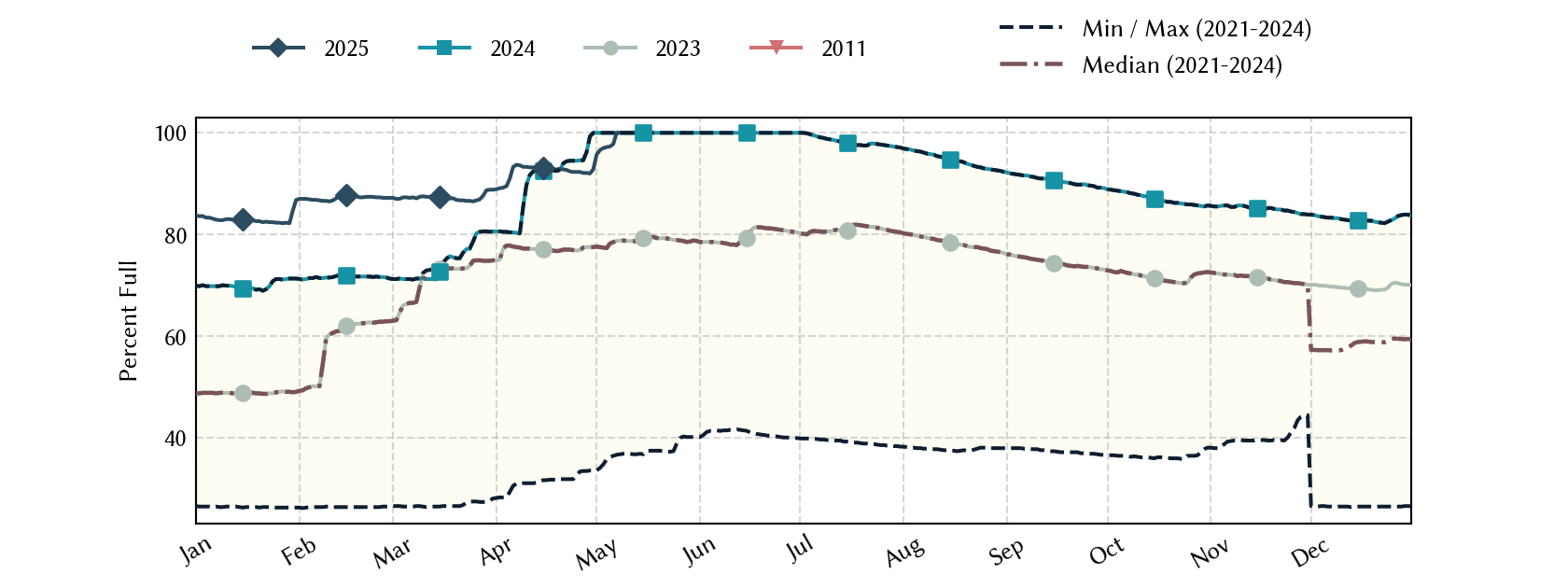

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2022-11-28 01:45 518.08 534.00 -15.92
1 hour prior 2022-11-28 00:45 518.06 534.00 -15.94
2 hours prior 2022-11-27 23:45 518.04 534.00 -15.96
6 hours prior 2022-11-27 19:45 518.00 534.00 -16.00
12 hours prior 2022-11-27 13:45 517.94 534.00 -16.06
24 hours prior 2022-11-27 01:45 517.57 534.00 -16.43
48 hours prior 2022-11-26 01:45 517.02 534.00 -16.98
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 2021-04-14
Gauge USGS:07332621
Vertical datum NAVD88
Service spillway crest elevation 534.00 ft above NAVD88
Emergency spillway crest elevation 540.00 ft above NAVD88
Maximum design elevation 550.00 ft above NAVD88
Top of dam elevation 553.00 ft above NAVD88
Conservation pool elevation 534.00 ft above NAVD88
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

2021-04-14 (source: NTMWD)
