Recent changes

2013-02-12: The rating curve for Brady Creek Reservoir has been updated and replaced with data from the Texas Water Development Board's Report 126.

Brady Creek Reservoir: 89.3% full as of 2020-05-31

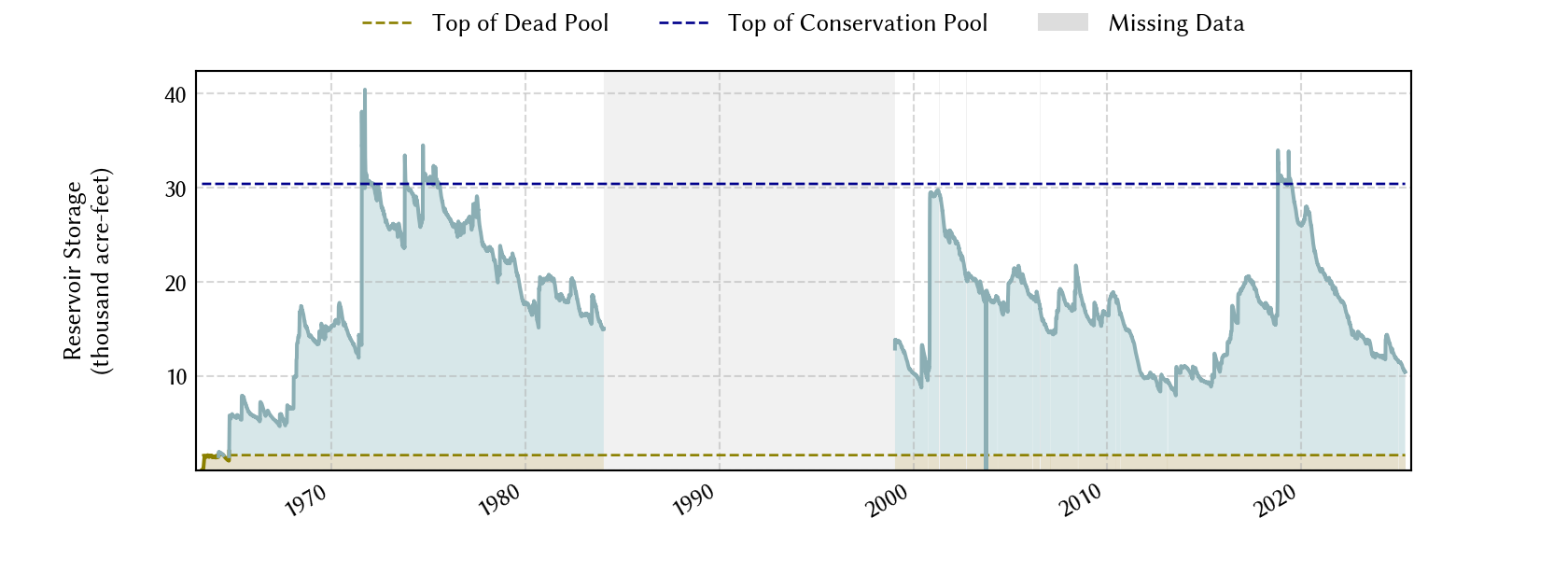

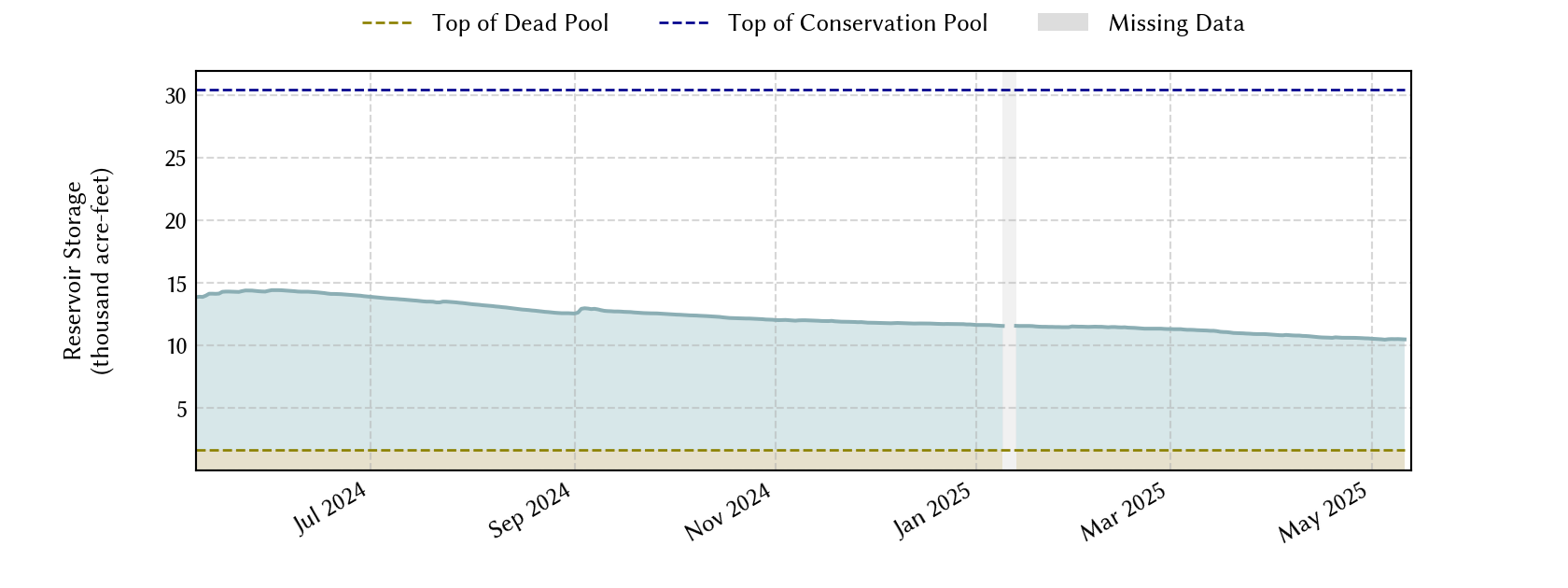

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Historical Data

Date Percent Full Mean Water Level
(ft) 		Reservoir Storage
(acre-ft) 		Conservation Storage
(acre-ft) 		Conservation Capacity
(acre-ft) 		Surface Area
(acres)
Most recent 2020-05-31 89.3 1,741.37 27,347 25,725 28,808 1,886
1 day prior 2020-05-30 89.4 1,741.38 27,367 25,745 28,808 1,886
2 days prior 2020-05-29 89.5 1,741.40 27,408 25,786 28,808 1,888
1 week prior 2020-05-24 89.2 1,741.36 27,327 25,705 28,808 1,885
1 month prior 2020-04-30 90.3 1,741.51 27,622 26,000 28,808 1,898
3 months prior 2020-02-29 86.6 1,740.99 26,582 24,960 28,808 1,852
6 months prior 2019-11-30 85.2 1,740.75 26,154 24,532 28,808 1,829
1 year prior 2019-05-31 100.0 1,743.01 30,456 28,808 28,808 2,021
*

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft) 		Conservation Pool Elevation
(ft) 		Height Above Conservation Pool
(ft)
Most recent 2020-05-31 22:45 1,741.36 1,743.00 -1.64 below flood pool
1 hour prior 2020-05-31 21:45 1,741.37 1,743.00 -1.63 below flood pool
2 hours prior 2020-05-31 20:45 1,741.37 1,743.00 -1.63 below flood pool
6 hours prior 2020-05-31 16:45 1,741.37 1,743.00 -1.63 below flood pool
12 hours prior 2020-05-31 10:45 1,741.36 1,743.00 -1.64 below flood pool
24 hours prior 2020-05-30 22:45 1,741.37 1,743.00 -1.63 below flood pool
48 hours prior 2020-05-29 22:45 1,741.38 1,743.00 -1.62 below flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1963-01-01
Vertical datum NGVD29
Gauge USGS:08144900
Dead pool elevation 1,712.00 ft above NGVD29
Service spillway crest elevation 1,743.00 ft above NGVD29
Emergency spillway crest elevation 1,762.40 ft above NGVD29
Top of dam elevation 1,783.00 ft above NGVD29
Conservation pool elevation 1,743.00 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

1974-10-01 (source: twdb)

Lake Location
