Lake Palo Pinto: 83.9% full as of 2019-09-19

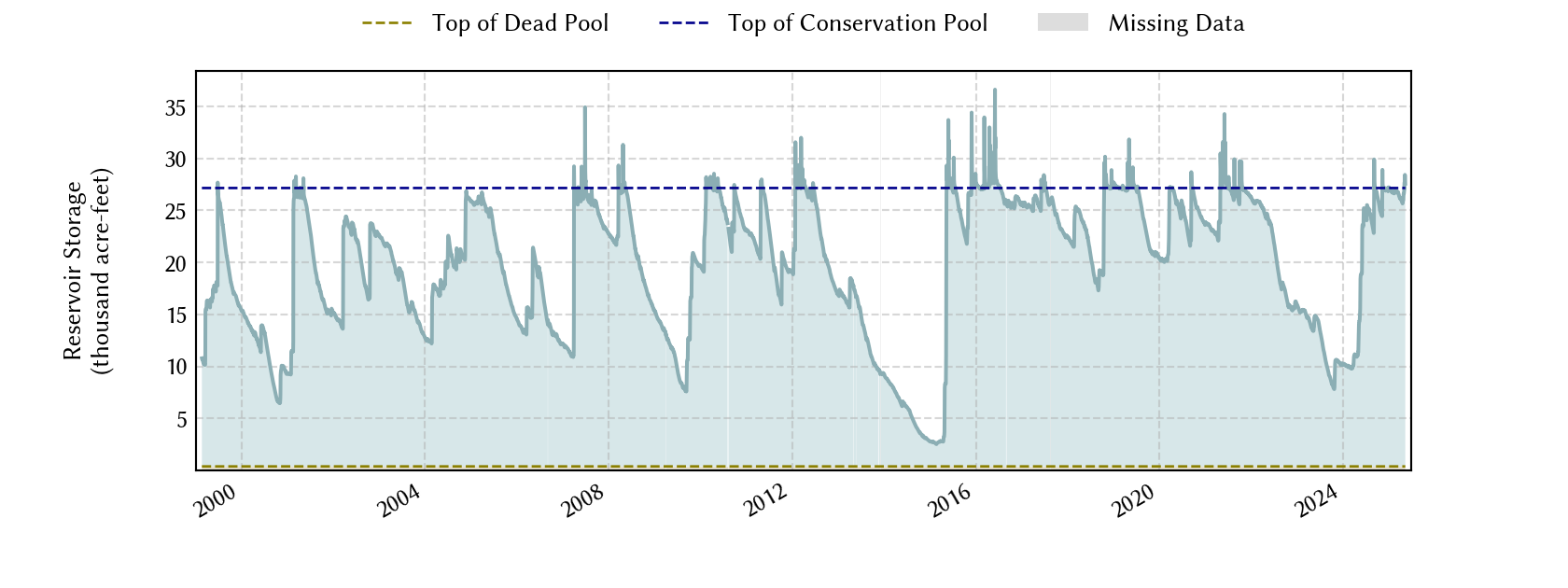

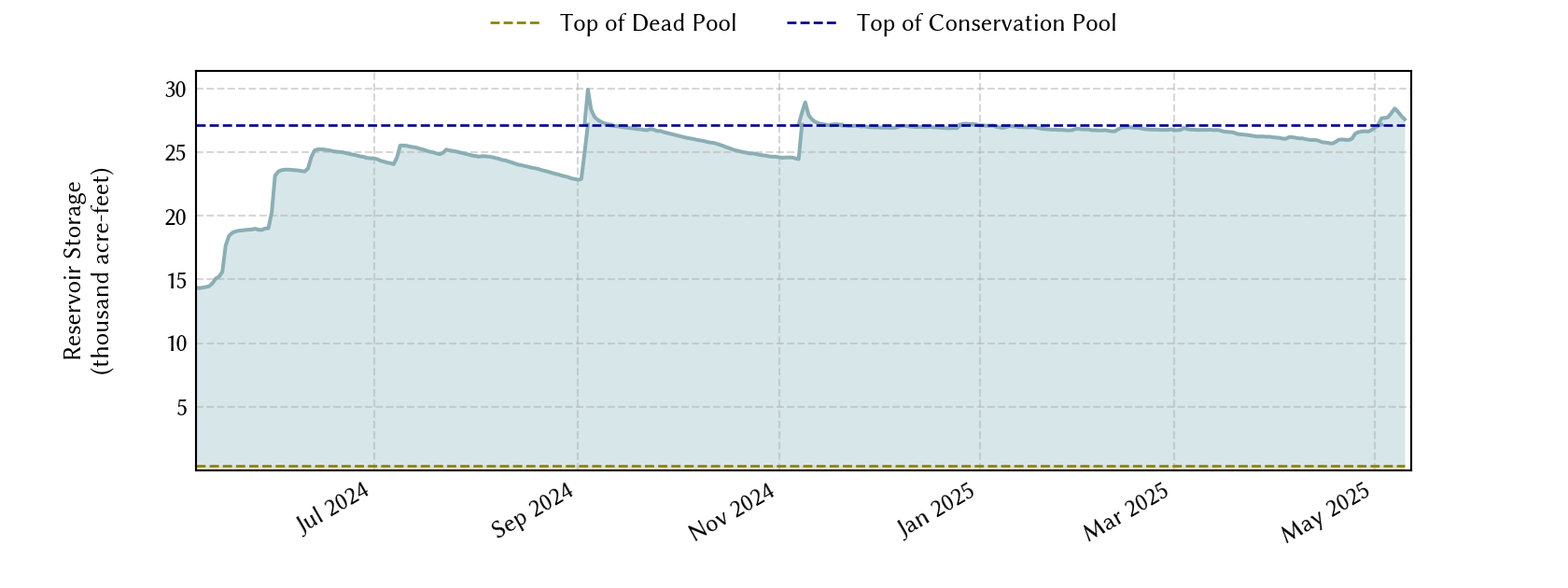

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Historical Data

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2019-09-19 83.9 864.98 22,841 22,455 26,766 2,094
1 day prior 2019-09-18 84.1 865.00 22,883 22,497 26,766 2,095
2 days prior 2019-09-17 84.2 865.02 22,924 22,538 26,766 2,096
1 week prior 2019-09-12 85.4 865.17 23,239 22,853 26,766 2,102
1 month prior 2019-08-19 90.7 865.84 24,656 24,270 26,766 2,128
3 months prior 2019-06-19 100.0 867.08 27,326 26,766 26,766 - n.a. -
6 months prior 2019-03-19 100.0 867.04 27,239 26,766 26,766 - n.a. -
1 year prior 2018-09-19 70.0 863.14 19,112 18,726 26,766 1,936
*

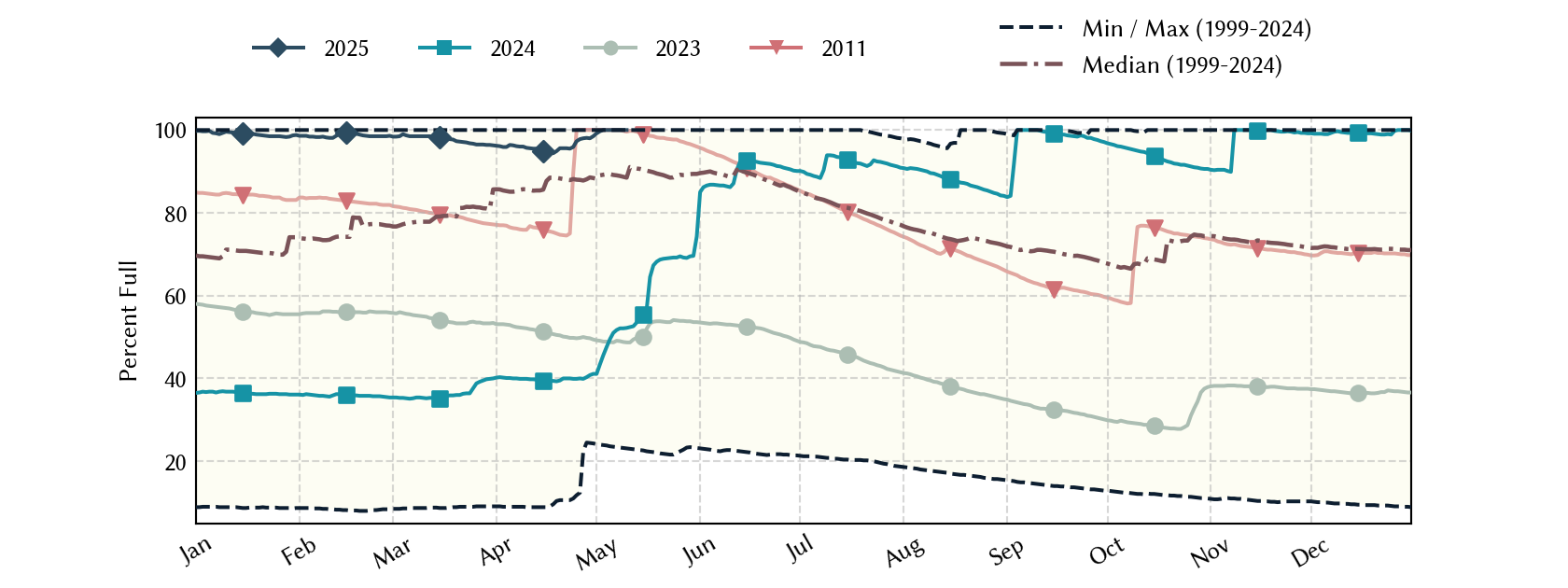

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2019-09-20 04:15 864.95 867.00 -2.05 below flood pool
1 hour prior 2019-09-20 03:15 864.96 867.00 -2.04 below flood pool
2 hours prior 2019-09-20 02:15 864.96 867.00 -2.04 below flood pool
6 hours prior 2019-09-19 22:15 864.95 867.00 -2.05 below flood pool
12 hours prior 2019-09-19 16:15 864.96 867.00 -2.04 below flood pool
24 hours prior 2019-09-19 04:15 864.98 867.00 -2.02 below flood pool
48 hours prior 2019-09-18 04:15 865.01 867.00 -1.99 below flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1964-01-01
Vertical datum NGVD29
Gauge USGS:08090300
Dead pool elevation
ending 2007-06-01
835.00 ft above NGVD29
Dead pool elevation
starting 2007-06-01
835.00 ft above NGVD29
Emergency spillway crest elevation 867.00 ft above NAVD88
Top of dam elevation 898.00 ft above NAVD88
Conservation pool elevation
ending 2007-06-01
867.00 ft above NGVD29
Conservation pool elevation
starting 2007-06-01
867.00 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

2007-06-01 (source: twdb) : GIS Data

Lake Location
