Whitney Lake: 100.0% full as of 2021-06-23

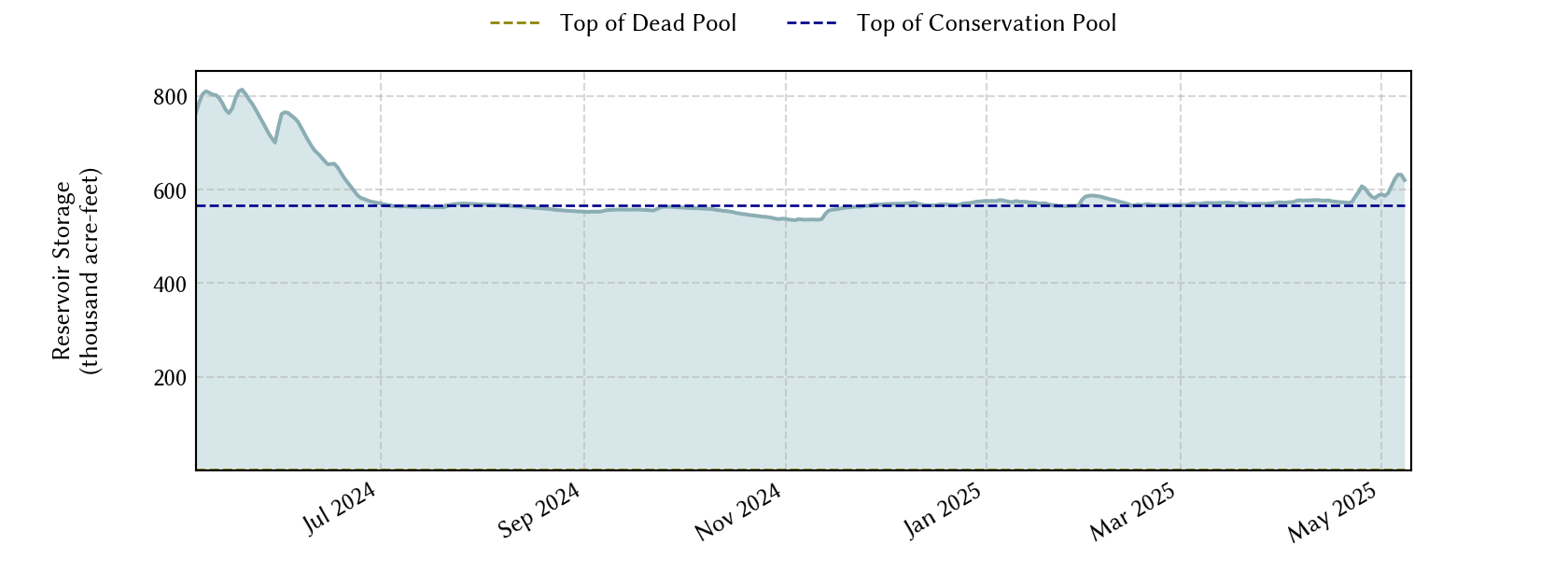

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

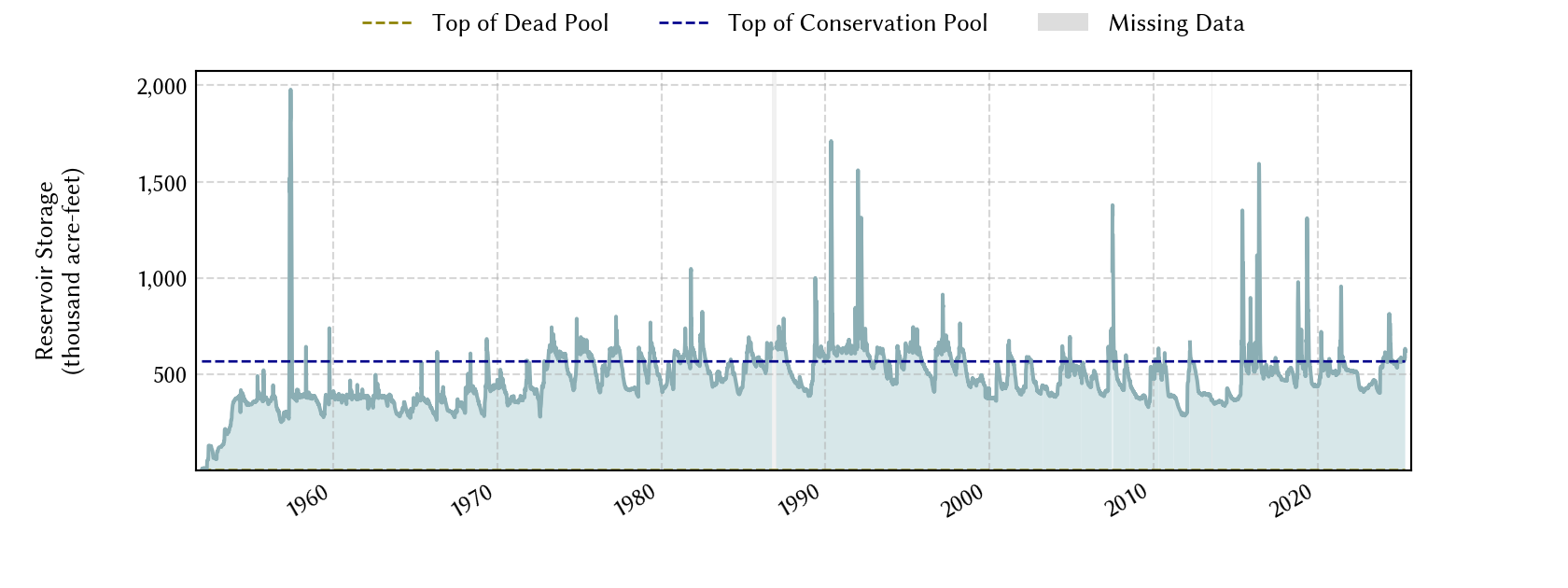

Historical Data

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2021-06-23 100.0 534.98 600,754 553,344 553,344 - n.a. -
1 day prior 2021-06-22 100.0 535.71 618,654 553,344 553,344 - n.a. -
2 days prior 2021-06-21 100.0 536.55 639,745 553,344 553,344 - n.a. -
1 week prior 2021-06-16 100.0 542.73 811,095 553,344 553,344 - n.a. -
1 month prior 2021-05-23 100.0 535.99 625,625 553,344 553,344 - n.a. -
3 months prior 2021-03-23 88.4 530.04 490,148 489,289 553,344 20,339
6 months prior 2020-12-23 89.5 530.32 495,885 495,026 553,344 20,640
1 year prior 2020-06-23 94.2 531.55 521,969 521,110 553,344 21,694
*

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2021-06-24 00:15 534.63 533.00 1.63 into flood pool
1 hour prior 2021-06-23 23:15 534.66 533.00 1.66 into flood pool
2 hours prior 2021-06-23 22:15 534.68 533.00 1.68 into flood pool
6 hours prior 2021-06-23 18:15 534.78 533.00 1.78 into flood pool
12 hours prior 2021-06-23 12:15 534.96 533.00 1.96 into flood pool
24 hours prior 2021-06-23 00:15 535.33 533.00 2.33 into flood pool
48 hours prior 2021-06-22 00:15 536.08 533.00 3.08 into flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1951-01-01
Vertical datum NGVD29
Gauge USGS:08092500
Dead pool elevation 448.83 ft above NGVD29
Service spillway crest elevation 533.00 ft above NGVD29
Top of flood gate elevation 571.00 ft above NGVD29
Emergency spillway crest elevation 571.00 ft above NGVD29
Flood pool elevation 571.00 ft above NGVD29
Maximum design elevation 573.00 ft above NGVD29
Top of dam elevation 584.00 ft above NGVD29
Conservation pool elevation 533.00 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

2005-06-01 (source: twdb) : GIS Data

Lake Location
